Edit ContentSTUD BOLT
Category: STUD BOLT
Publish Time: 2017-08-10 14:45
A193 B7 STUD BOLT , A193 B8, B16, STUD BOLT

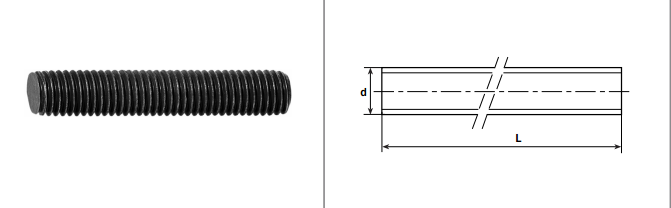

STUD BOLT ( FULLY THREADED / DOUBLE END THREAD / ONE END THREAD )
| Specification | Detail | Nominal Size |
| CARBON STEEL | GRADE 6.8 | M5~M100 |
| GRADE 8.8 | M5~M100 | |
| GRADE 10.9 | M5~M100 | |
| GRADE 12.9 | M5~M100 | |
| HIGH TEMPRETURE ALLOY STEEL | ASTM A193 B7 | 1/2''~4''(M5-M100) |
| ASTM A193 B7M | 1/2''~4''(M5-M100) | |
| ASTM A193 B5 | 1/2''~4''(M5-M100) | |
| ASTM A193 B6 | 1/2''~4''(M5-M100) | |
| ASTM A193 B16 | 1/2''~4''(M5-M100) | |
| LOW TEMPRETURE ALLOY STEEL | ASTM A320 L7 | 1/2''~4''(M5-M100) |
| ASTM A320 L7M | 1/2''~4''(M5-M100) | |
| ASTM A320 L43 | 1/2''~4''(M5-M100) | |
| STAINESS STEEL | A193 B8 ( 304SS) | 1/2''~4''(M5-M100) |
| A193 B8M (316SS) | 1/2''~4''(M5-M100) | |
| A193 B8T (321SS) | 1/2''~4''(M5-M100) | |
| A320 B8 (304SS) | 1/2''~4''(M5-M100) | |
| A320 B8M (316SS) | 1/2''~4''(M5-M100) | |
| SEPECIAL STEEL | ASTM A453 660 | 1/2''~4''(M5-M100) |
| Monel400 | 1/2''~4''(M5-M100) | |
| Incoloy | 1/2''~4''(M5-M100) | |
| ASTM A182 F51, S31803 | 1/2''~4''(M5-M100) | |
| ASTM A182 F53, S32750 | 1/2''~4''(M5-M100) | |
| ASTM A182 F55, S32760 | 1/2''~4''(M5-M100) |
