Edit ContentA193 B8 Hex Bolt
Category: HEX BOLT
Publish Time: 2017-08-10 17:14
Hex Bolt Material : Carbon Steel / Alloy Steel / Stainless Steel / Monel / Inconel / Incoloy / Duplex Steel Hex Bolt Standard : DIN 931/ DIN 933 / AS 1252 / ANSI B18.2.1 /A325 /A490

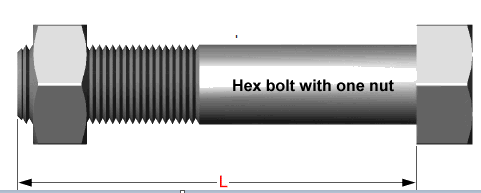

HEX BOLT ( HEAVY HEX BOLT / HEX STRUCTURE BOLT / HEX BOLT)
| Specification | Detail | Nominal Size |
| CARBON STEEL | DIN 931 | M5~M100 |
| DIN 933 | M5~M100 | |
| AS 1252 | M5~M100 | |
| HIGH TEMPRETURE ALLOY STEEL | ASTM A193 B7 | 1/2''~4''(M5-M100) |
| ASTM A193 B7M | 1/2''~4''(M5-M100) | |
| ASTM A193 B5 | 1/2''~4''(M5-M100) | |
| ASTM A193 B6 | 1/2''~4''(M5-M100) | |
| ASTM A193 B16 | 1/2''~4''(M5-M100) | |
| ASTM A325 | 1/2''~4''(M5-M100) | |
| ASTM F1852 A325 TC Bolt | 1/2''~4''(M5-M100) | |
| ASTM A490 | 1/2''~4''(M5-M100) | |
| ASTM F2280 A490 TC Bolt | 1/2''~4''(M5-M100) | |
| LOW TEMPRETURE ALLOY STEEL | ASTM A320 L7 | 1/2''~4''(M5-M100) |
| ASTM A320 L7M | 1/2''~4''(M5-M100) | |
| ASTM A320 L43 | 1/2''~4''(M5-M100) | |
| STAINESS STEEL | A193 B8 ( 304SS) | 1/2''~4''(M5-M100) |
| A193 B8M (316SS) | 1/2''~4''(M5-M100) | |
| A193 B8T (321SS) | 1/2''~4''(M5-M100) | |
| A320 B8 (304SS) | 1/2''~4''(M5-M100) | |
| A320 B8M (316SS) | 1/2''~4''(M5-M100) | |
| SEPECIAL STEEL | ASTM A453 660 | 1/2''~4''(M5-M100) |
| Monel400 | 1/2''~4''(M5-M100) | |
| Incoloy | 1/2''~4''(M5-M100) | |
| ASTM A182 F51, S31803 | 1/2''~4''(M5-M100) | |
| ASTM A182 F53, S32750 | 1/2''~4''(M5-M100) | |
| ASTM A182 F55, S32760 | 1/2''~4''(M5-M100) |
